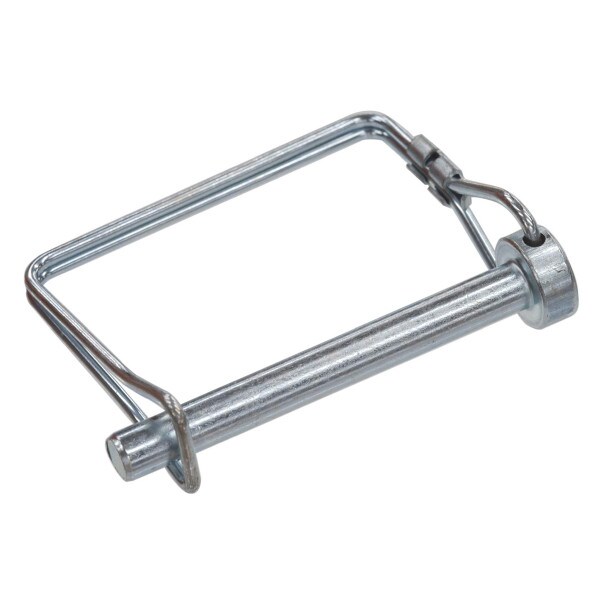

Square Wire Lock Pin
Any product images shown are for illustration purposes only and may not be an exact representation of the product. Please check with Bolts Plus prior to ordering to confirm specifics including (but not limited to) thread length and plating colour.
Details
A square lock wire pin is used to secure or lock mechanical components in place, preventing them from shifting or separating. It’s commonly found in machinery, automotive, aerospace, and construction equipment to ensure stability and safety.
Measure the Shaft Diameter:
- Use a caliper or micrometer to measure the diameter of the pin's shaft. This is the width of the square section if it’s a square lock pin.
Measure the Shaft Length:
- Measure the length of the pin’s shaft from end to end. This is the distance from one end of the pin to the other, excluding any additional features or attachments.
Measure the Square Dimensions:
- For a square lock pin, ensure to measure the side length of the square cross-section. This is crucial for a proper fit into square holes or slots.
Measure the Pin's Overall Width (if applicable):
- If the pin has any specific width apart from the square section, measure this as well.
Ensure to use accurate measuring tools like calipers or micrometers for precise measurements, especially if the pin needs to fit into specific equipment or parts.
